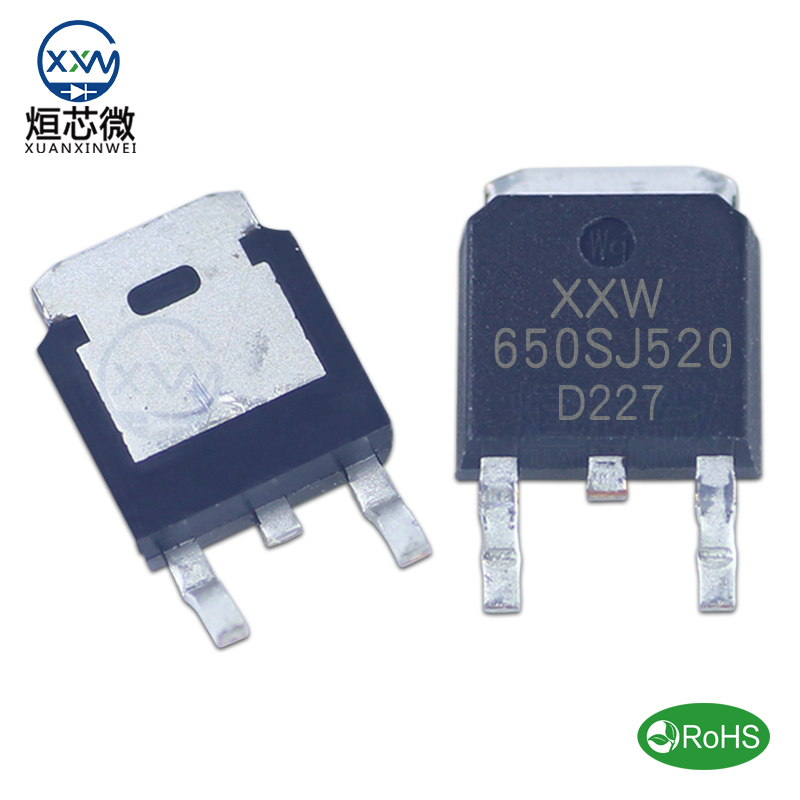

650SJ520,650SJ520超潔MOS管,8A/650V TO-252
650SJ520超潔MOS管,超潔MOS管650SJ520參數資料,650SJ520封裝TO-252,650SJ520中文資料規格書PDF
650SJ520超潔MOS管,超潔MOS管650SJ520參數資料,650SJ520封裝TO-252,650SJ520中文資料規格書PDF
650SJ520 TO-252封裝參數：點擊查看
650SJ520超潔MOS管參數具體如下：
極性：NPN
Drain-Source Voltage 漏源電壓Vds：650V
Gate-Source Voltage 柵源電壓Vgs：±30V
Continuous Drain Current 漏極電流Id Tc=25℃：8A
Power Dissipation 功率損耗Pd Ta=25℃：57W
Power Dissipation 功率損耗Pd Ta=70℃：W
Static Drain-Source On-Resistance 導通電阻ID=1.5A,VGS=10V： Typ 0.5Ω Max 0.6Ω
Static Drain-Source On-Resistance 導通電阻ID=Typ Ω Max Ω
Junction and Storage Temperature Range 溫度范圍：-55~+150℃
650SJ520超潔MOS管TO-252封裝尺寸：
650SJ520超潔MOS管/TO-220封裝尺寸：
